Valve types header

Fit it Correctly

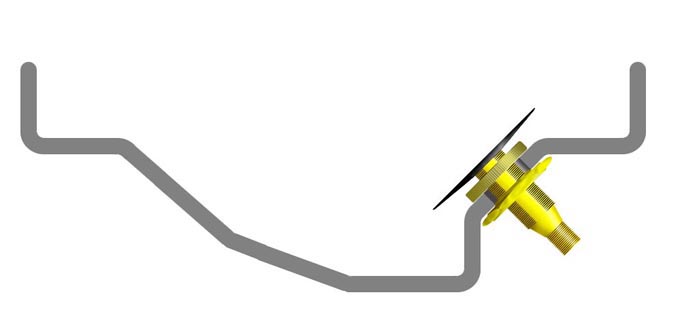

Our metal-valved tubes are fitted with double locking nuts to ensure a positive seating and prevent chafing around the union between the valve and the tube itself. The diagram below shows how they should be fitted. Note the small gap below the inner locking ring and tube. You should wind the inner ring away from the valve base by 1-2mm, then tighten the outer hexagon nut to clamp the rim.

Correct fitting of a metal valve

Valve Types

You'll see TR references on most of our tubes - TR11C, TR13 and so on. They give you information on the valve type fitted. The chart below shows our most common valve types.

TR11C ValveW90200 Valve

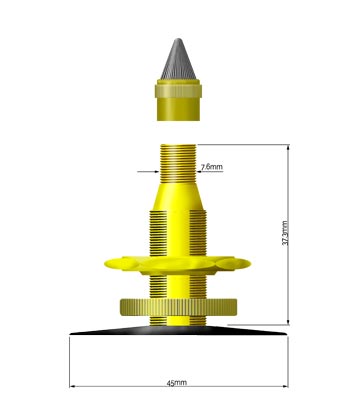

TR11C

TR13 Valve

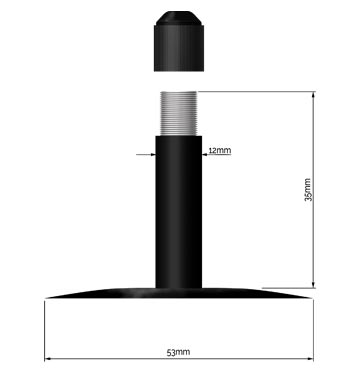

TR13

W90200

TR15 ValveTR4 Valve

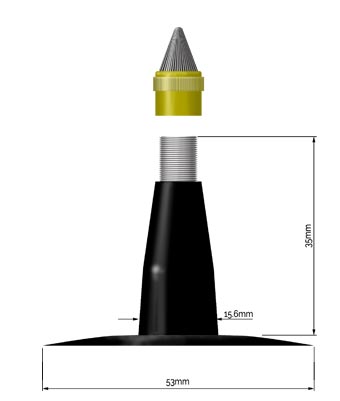

TR15

TR4

TR6 Valve

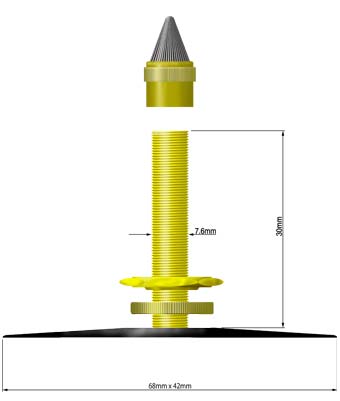

TR6
